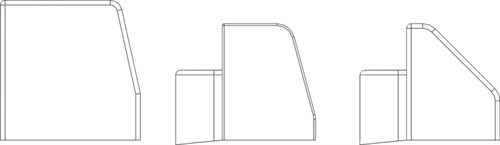

RediKerb Surface Kerbing is a comprehensive range of surface mounted kerbing in both Half Battered (HB) and Splayed Face (SP) profiles
Kerbing & Traffic Islands
RediKerb Surface Kerbing

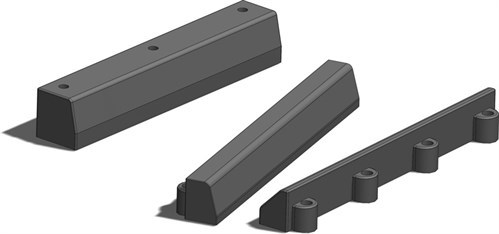

RediKerb Surface Kerbing is a comprehensive range of surface mounted kerbing in both Half Battered (HB) and Splayed Face (SP) profiles. Kerbs are available in one metre lengths with matching corner units.
RediKerb is flexible and can be formed in a curve with a minimum radius of 4m (SP) and 6m (HB). We also offer a non-flexible Harlow Kerb with HB profile.
RediKerb Surface Kerbing offers easy construction of Traffic Islands, buildouts, pinch points, road closures, lane segregation, and pavement widening, then infilled with asphalt or similar (by others). Now available with a unique Adhesive option for depth restraints such as bridges. Product meets DfT specifications.
- Easy Installation
Bolt down product requiring no excavation. - Surface Mounted
Bolt down with no excavation and no spoil. - Health & Safety
Weight less than 20kg for manual handling. - Applications
For multiple or temporary use, can be used on tarmac or concrete surfaces. - Environment
Made from recycled rubber in the UK.
RediKerb Surface Kerbing
Technical Information
Module |
Height (mm) |
Radius |
Length (mm) |
Width (mm) |
Fixings |
Weight (kg) |
RediKerb Half Battered Profile (HB) | 125 | 1000 | 150 | 4 | 11.5 | |
45º | 125 | 250 | 1 | 2.3 | ||
90º | 125 | 250 | 2 | 4.5 | ||
135º | 125 | 250 | 3 | 6.7 | ||
180º | 125 | 250 | 4 | 8.9 | ||
RediKerb Splayed Face Profile (SP) | 125 | 1000 | 150 | 4 | 10.5 | |
45º | 125 | 250 | 1 | 2.0 | ||
90º | 125 | 250 | 2 | 3.9 | ||
135º | 125 | 250 | 3 | 5.8 | ||
180º | 125 | 250 | 4 | 7.7 | ||
Harlow Kerb | 150 | 914 | 150 | 3 | 19.0 |
Frequently asked questions
Can’t find the answer you’re looking for? Reach out to our customer support team
What radius can you achieve using your flexible Kerbing?
SP Kerbs can be curved to Form a 4m radius and HB Kerbs 6m radius.

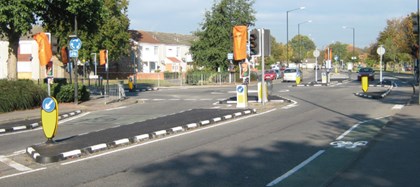

RediKerb Case Studies
Read more about how our clients have used RediKerb Surface Kerbing
Method Statement
Download our Kerbing installation and information sheets
