TakPave

Key Features

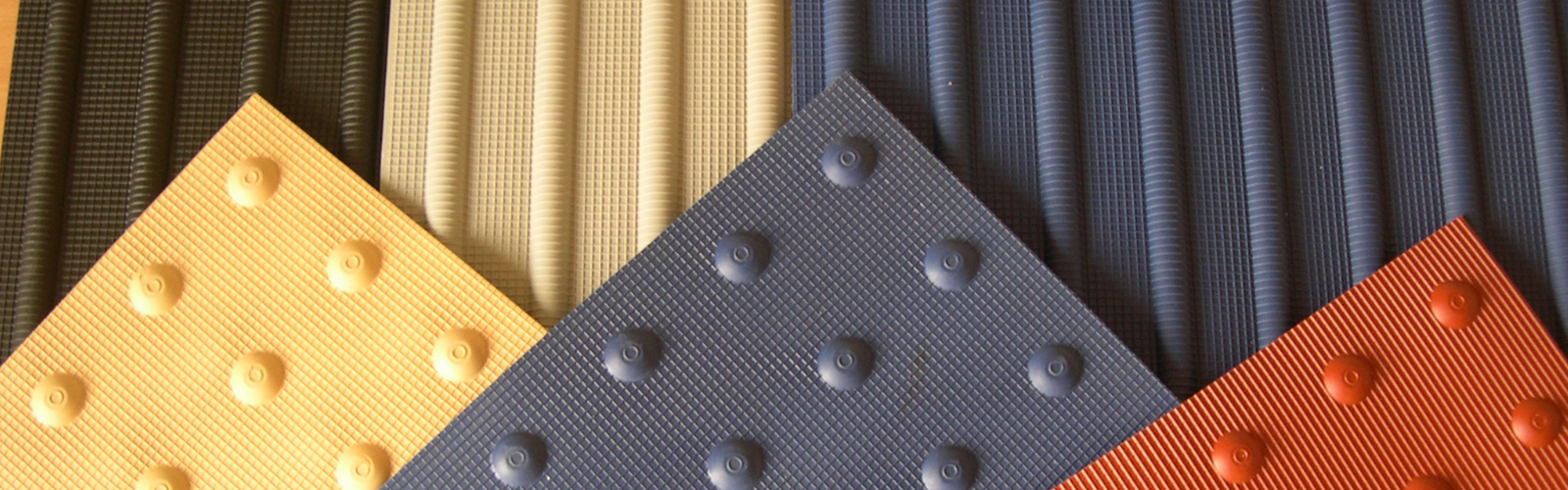

Rediweld offers a comprehensive range of tactile surfaces for the guidance of the visually impaired. Tiles are surface mounted with TakPave requiring adhesive.

DfT Guidance
Conforms with “Guidance on the use of Tactile Paving Surfaces”.

Compliance
Assists providers to  achieve DDA Compliance.

Material
Unique mineral filled elastomers formulated for durability and abrasion resistance.

Surface
Supplied in 400mm square tiles that can be adhered to most surfaces.

Patterned
Cross hatched surface pattern for greater skid resistance.

Colours
Available in buff, grey, black, blue, yellow and red (controlled crossing only).



Technical Information

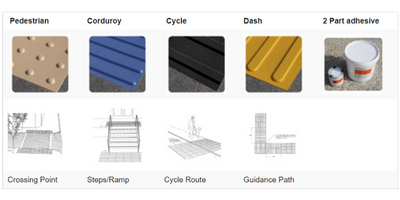

 Pedestrian Corduroy   Cycle Dash  2 Part adhesive
 Ped Dot Takpave Cord Takpave  Cycle Takpave Dash Takpave  Adhesive
Ped Dot Takpave Draw   Cord Takpave Draw  Cycle Takpave Draw  Dash Takpave Draw

Blank

Crossing Point Steps/Ramp Cycle Route Guidance Path

All tiles are 400mm²

All tiles are nominally 2.5mm thick

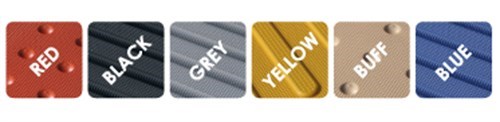

Takpave Colours

* RED is only suitable for controlled crossings using Pedestrian Dot.



When install TakPave it is important to follow the information provided by the Department of Transport "Guidance on the use of Tactile Paving Surfaces".
