One Piece WandOrca

The One Piece WandOrca is an addition to the existing WandOrca range, but providing a 1mtr length which combines one Jislon Pole Cone. This small version is ideal for minimal space or quick and easy installation of new pop up cycle lanes providing a permanent or temporary solution

Cycle Lane Products

One Piece WandOrca

One_Piece_WandOrca_Jislon_Pole_Cone_Nighttime_Rediweld_Traffic
One Piece WandOrca with Jislon Pole Cones
One_Piece_Wand_Orca_Jislon_Pole_Cone_Sign_Rediweld_Traffic_2

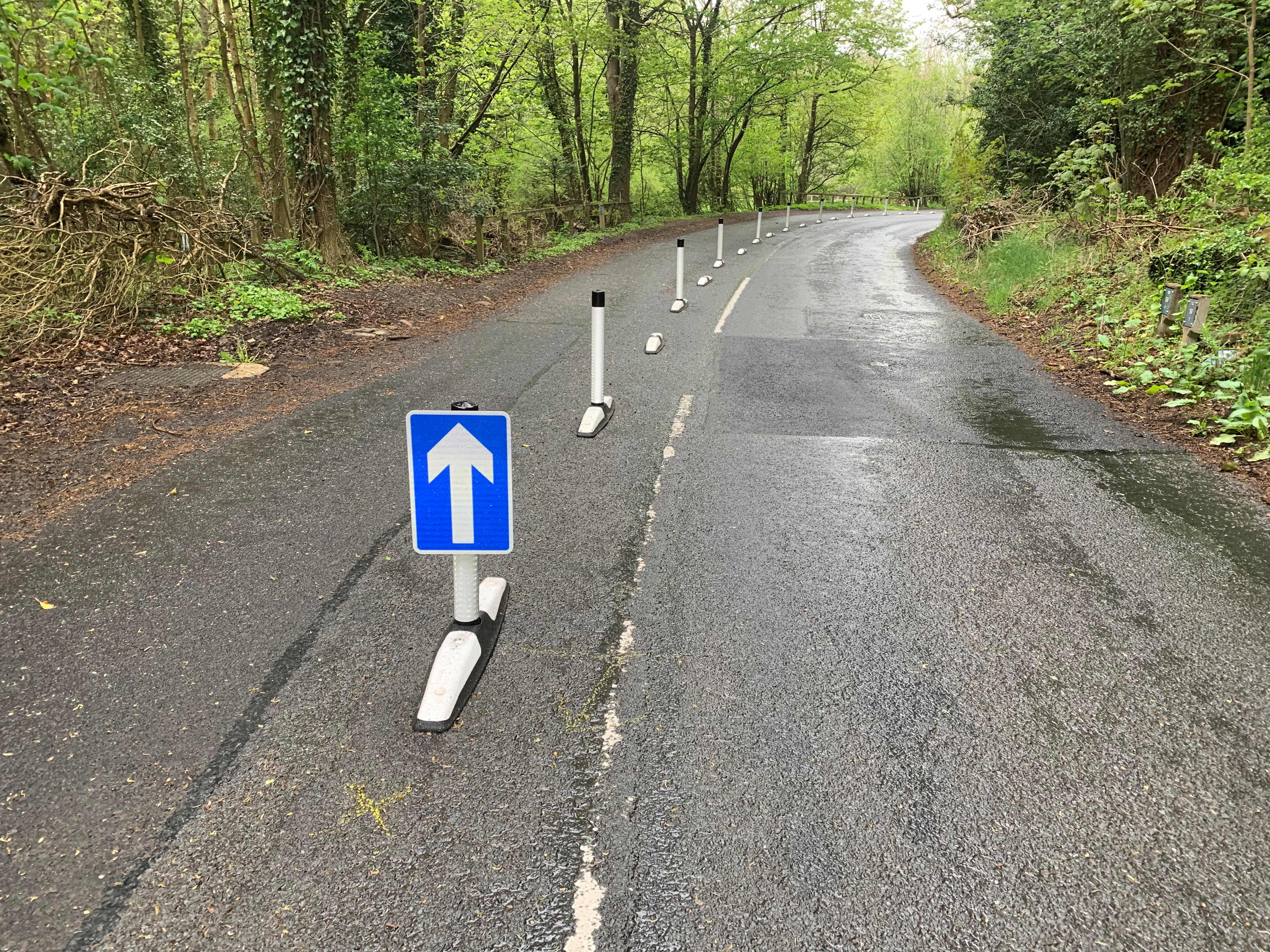

One Piece WandOrca with Sign & Jislon Pole Cone (Scotland)
One_Piece_WandOrca_Jislon_Pole_Cone_Whitburn_Rediweld_Traffic
One Piece WandOrca & Jislon Pole Cones (Sunderland)
One_Piece_WandOrca_Jislon_Pole_Cone_Wales_Rediweld_Traffic2

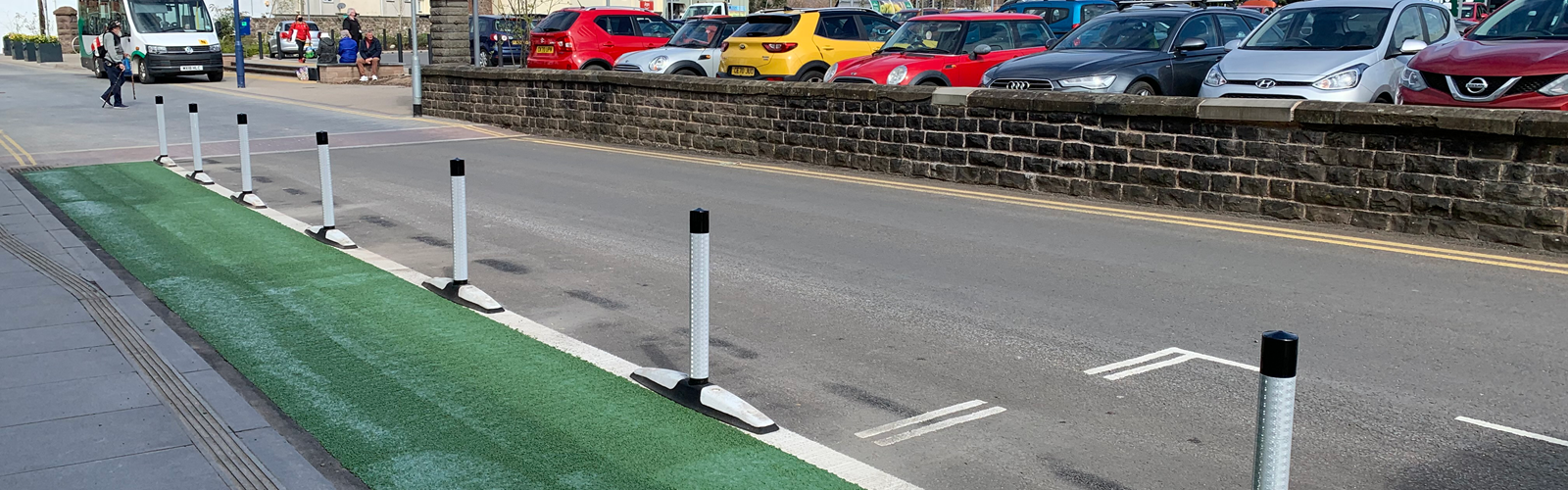

One Piece WandOrca & Jislon Pole Cones (Wales)
One_Piece_Wand_Orca_Jislon_Pole_Cone_Rediweld_Traffic_6
One Piece WandOrca & Jislon Pole Cones (Bath)
One_Piece_Wand_Orca_Jislon_Pole_Cone_Rediweld_Traffic_8
One Piece WandOrca & Jislon Pole Cones (Dorset)
One_Piece_WandOrca_Jislon_Pole_Cone_Wales_Rediweld_Traffic

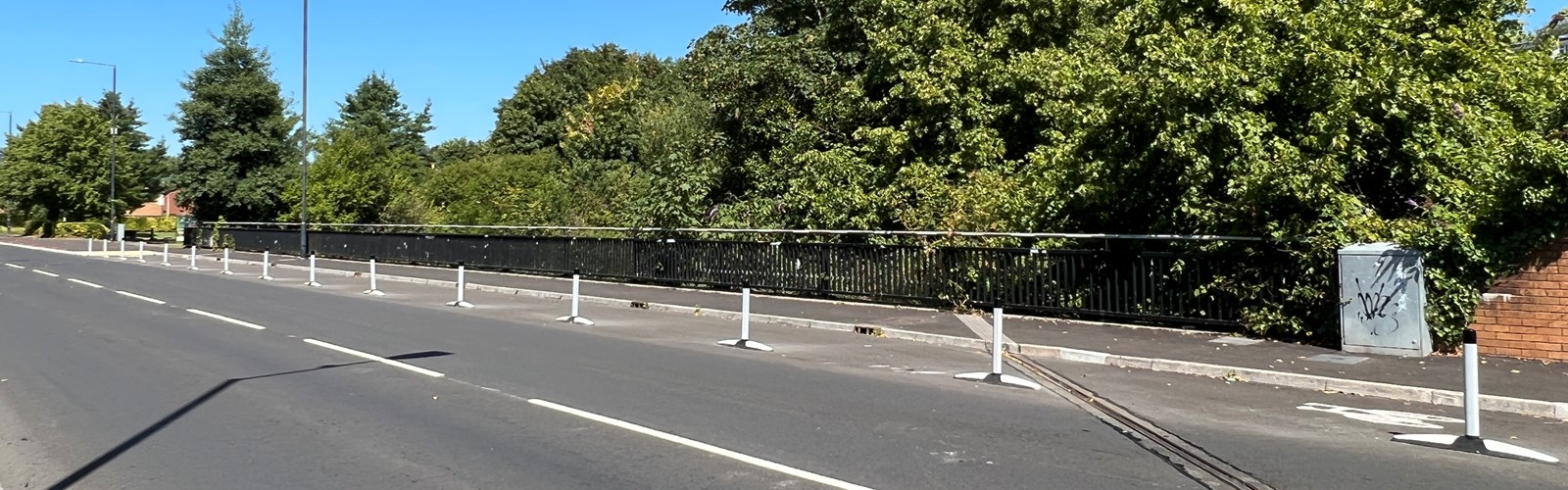

One Piece WandOrca & Jislon Pole Cones (Wales)

The One Piece WandOrca is an addition to the existing WandOrca range, but providing a 1mtr length which combines one Jislon Pole Cone. This small version is ideal for minimal space or quick and easy installation of new pop up cycle lanes providing a permanent or temporary solution.


The Jislon Pole Cone has TSRGD markings, together with horizontal rubber modules. This is ideal for segregation over longer distances where speeds may be higher.



The One Piece WandOrca also offers a rubber bung with a reflective glass dome which can be used instead of the Jislon Pole Cone. Spacing's for the One Piece WandOrca will depend on the location and application but typically 5m to 10m.



Jislon Pole Cones are available in 800mm high or 1000mm heights, colour Black with TSRGD reflective banding and offer an NSE fixing for quick installation.





Environmental Benefits

Manufactured from recycled rubber for the One Piece WandOrca and Polyurethane for the Jislon Pole Cones these provide a passively safe product. Both of these products are able to absorb energy on impact without cracking or fracturing, unlike some alternative materials which might cause injury, punctures on a vehicle or cycle tyre.



  • Innovative design to provide horizontal and Vertical segregation measures.
  • Manufactured from Recycled rubber providing tough and safer on impact, reducing risk of injury.
  • Suitable for manual handling with no mechanical lifting required.
  • Surface mounted minimising disruption with no spoil and reduced exposure to risk.
  • Short lengths providing quick & easy installation.
  • High visability markings on both products, EN12899 Certified for Jislon Pole Cones.
  • Unique fixing with Stainless Steel screw, washer and super tough nylon plug, make for a durable.
  • Low carbon footprint, with recycled material and low energy manufacturing process.

One Piece WandOrca

Technical Information

Model: One Piece WandOrca
Colour: Black With White Reflective Markings
Fixings: 4 Fixings Per Unit
Width: 175mm
Length: 1000mm
Height: 80mm
Weight: 7.2kgs

Frequently asked questions

Method Statement

Download our One Piece WandOrca installation sheet
